Providing affordable and reliable traffic monitoring products through an innovative design and engineering approach using appropriate and up-to-date technologies.
Traffic Monitoring Products
 | Mikros Systems(Pty) Ltd |
The current Traffic Event Logger range consists of:
RAKTEL 8010 for permanent HWSIM, AVC and loop only logging.
RAKTEL 4010 for AVC and loop only logging.
RAKTEL 1010 for AVC and loop only logging (limited).
Our Product Line
RAKTEL 8010
| RAKTEL 8010 is a modular card rack (19" 3U) system. This allows flexible configuration and serviceability.The RAKTEL 8010 can be used for a wide range of applications varying from HSWIM ,AVC and loop only traffic monitoring. The RAKTEL 8010 is supported by a complete set of software. The RAKTEL 8010 supports most modern communication channels and modes. The product is notably suited for longterm monitoring. All RAKTEL models share interface cards and software which simplifies serviceability. |
|
|
|
Brochure: RAKTEL_8010.pdf 1 770 KB High Speed Weigh In Motion: MIKROS_HSWIM.pdf 512 KB |
What Logger ? Available_Conf.pdf 66 KB |
Summary Specifications
- Sensor Inputs
- Primary / Secondary Sensors
- 8 Channel self tuning loop detector (Up to 16 channels)
- 8 Channel piezo or fiber optic axle detector
- 4 Channel piezo WIM interface (Up to 8 channels)
- 4 Channel WIM interface (Up to 8 channels, Capacitive, Bending Plate, Piezo & Piezo Quarts WIM sensors)
- Multiple trigger output
- Primary / Secondary Sensors
- Multiple Logging Modes (Aggregated and Vehicle By Vehicle)
- Arrival time
- Lane of travel
- Vehicle speed
- Chassis profile
- Vehicle length
- Axle spacing
- Axle weight
- Classification (FHWA or other)
- Memory Options
- Modules of 32K, 128K or 8M byte units (7x, 7x, 1x)
- Diagnostics
- Complete local and remote sensor & system status reporting
- Dynamic Sensor graphic displays
- Software Support
- TelWin/TelWinPlus/TelWinPro: Support programs for the complete set up, data extraction and monitoring function. Both local and remote access. Features manual, automatic and scheduled dialing. Supports modems, GPRS, TCP-IP, RS232 and more communication modes. The TelWinPro program support both Video stream and frame grab modes simultaneously.
- TrafBase data processing (validation and data archiving) software for reports, graphs and conversions. Converts to a number of specified data formats (FHWA card types 3, 7, W & S) also for export to spreadsheets.
Detail Specifications
| High Speed Weigh In Motion | Axle Spacing Classifier | Loop Only Classifier |
| Qaurtz_Kristal_HSWIM.pdf 696 KB | Axle_Classifier.pdf 690 KB | Loop_Counter_Classifier.pdf 624 KB |
| Bending_Plate_HSWIM.pdf 725 KB | ||
| MSI_Piezo_HSWIM.pdf 714 KB |
Image Gallery
 |
 |
 |
||||
RAKTEL 8000 |
Interface card slots |
Connection ports |
 |
 |
 |
||||

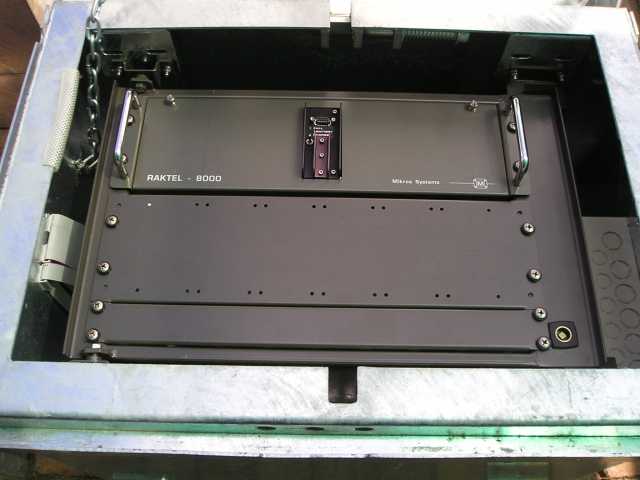

Mounted in swing frame |
Digital sensor signal |

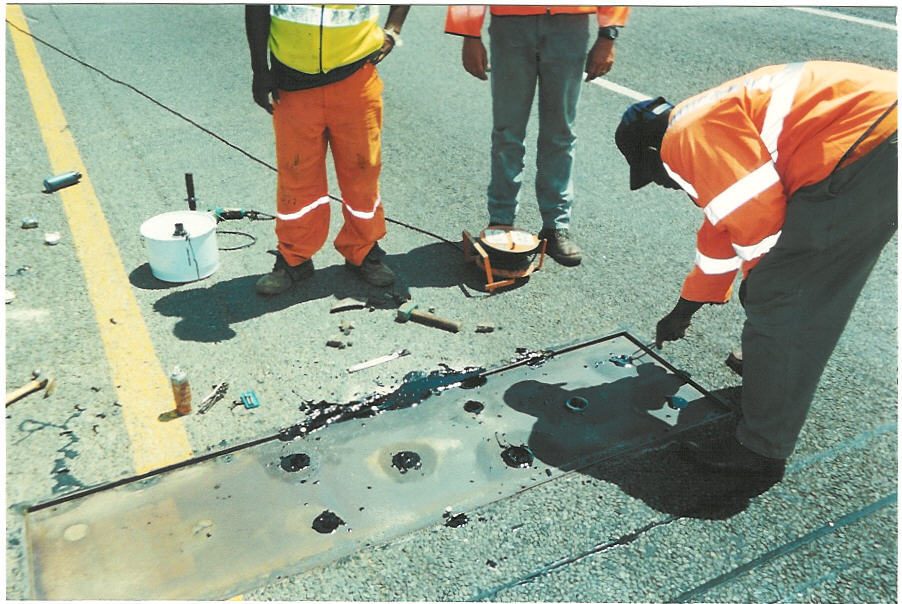

HSWIM installation |
