The current Traffic Event Logger range consists of:
RAKTEL 8010 for permanent HWSIM, AVC and loop only logging.
RAKTEL 4010 for AVC and loop only logging.
RAKTEL 1010 for AVC and loop only logging (limited).
Our Product Line
RAKTEL 4010
| RAKTEL 4010 is a slightly scaled down version of the RAKTEL 8010. It is a modular card rack (12.4" 3U) system. This allows flexible configuration and serviceability.The RAKTEL 4010 can be used for AVC and loop only traffic monitoring. The RAKTEL 4010 is supported by a complete set of software. The RAKTEL 4010 supports most modern communication channels and modes. The product is notably suited for longterm monitoring. All RAKTEL models share interface cards and software which simplifies serviceability. |
|
|
| Brochure: RAKTEL_4010.pdf 1 700 KB |
What Logger ? Available_Conf.pdf 66 KB |
Summary Specifications
- Sensor Inputs
- Primary / Secondary Sensors
- 8 Channel self tuning loop detector (Up to 16 channels)
- 8 Channel piezo or fiber optic axle detector
- Multiple trigger output
- Primary / Secondary Sensors
- Multiple Logging Modes (Aggregated and Vehicle By Vehicle)
- Arrival time
- Lane of travel
- Vehicle speed
- Chassis profile
- Vehicle length
- Axle spacing
- Classification (FHWA or other)
- Memory Options
- Modules of 32K, 128K or 8M byte units (7x, 7x, 1x)
- Diagnostics
- Complete local and remote sensor & system status reporting
- Dynamic Sensor graphic displays
- Software Support
- TelWin/TelWinPlus/TelWinPro: Support programs for the complete set up, data extraction and monitoring function. Both local and remote access. Features manual, automatic and scheduled dialing. Supports modems, GPRS, TCP-IP, RS232 and more communication modes. The TelWinPro program support both Video stream and frame grab modes simultaneously.
- TrafBase data processing (validation and data archiving) software for reports, graphs and conversions. Converts to a number of specified data formats (FHWA card types 3, 7, W & S) also for export to spreadsheets.
Detail Specifications
| Axle Spacing Classifier | Loop Only Classifier |
| Axle_Classifier_Specification.pdf 670 KB | Loop_Counter_Classifier_Specification.pdf 584 KB |
Image Gallery
 |
 |
 |
||||

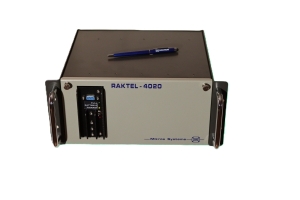

RAKTEL 4000 |

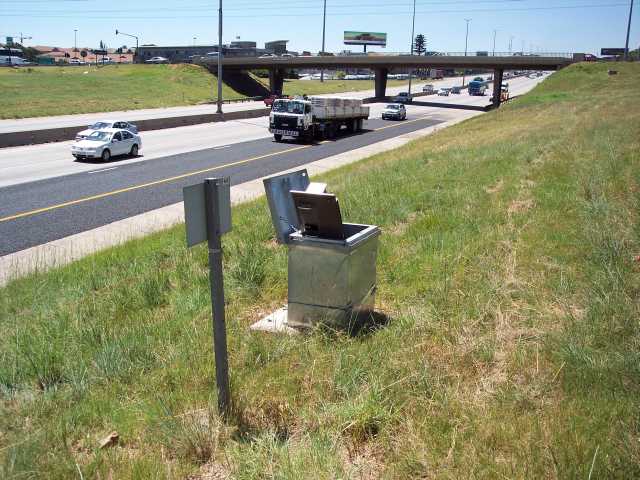

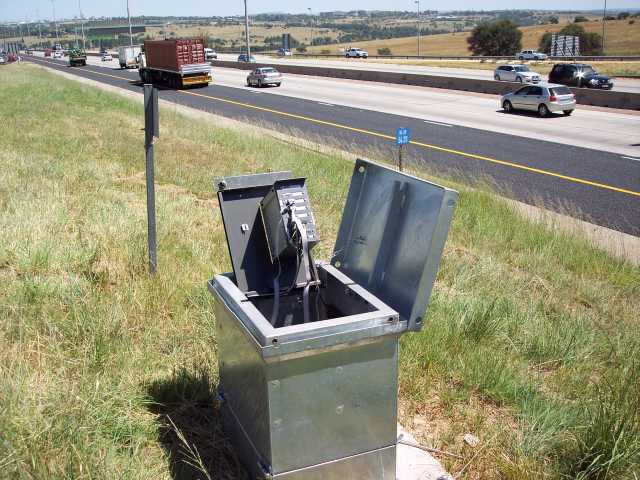

Secure housing with swing frame |
Secure housing with swing frame |
